Overhead Crane End Beam

  • Working Speed: 20/30 m/min
  • Power: 0.8~1.5Kw
  • Voltage: 380V 50HZ Three-phase
  • Work Duty: A3~A5

Description

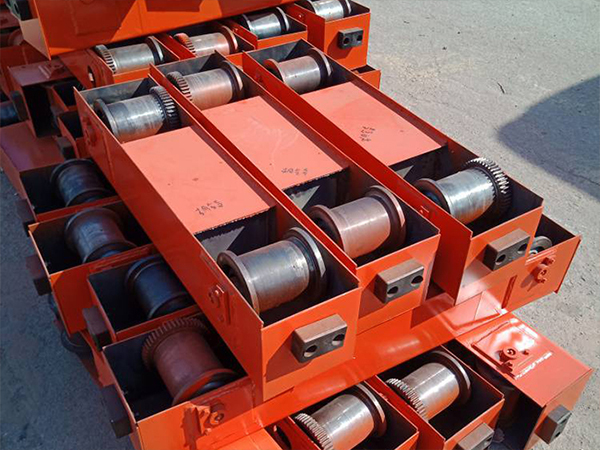

The end beam of a crane is a device that supports the movement of things.

The end beam is equipped with wheels at both ends to support the bridge running on an elevated platform. The main beam is welded with tracks for the operation of the lifting trolley.

Working Condition

Working temperature:-10°C~40°C

Features

01

Simple and fast handling

02

The angle bearing wheel group of the crane end beam can be removed for easy maintenance and adjustment

03

No need to remove additional components

Technical Data

End carriage modelApplication of crane modelRectangular steel tubeWheel sizeMotor power
L125-201t-11.5m150*150*6W125*600.3KW*2
L160-252t/3t-16.5m150*200*8W160*700.4KW*2
L200-305t-22.5m150*250*8W200*700.4KW*2
0.75KW*2
L250-35A10t-28.5m200*250*8W250*800.75KW*2
200*300*81.1KW*2
1.5KW*2
L315-3020t-16.5m200*400*8W315*901.5KW*2

Service

Free Crane Solution

1.Providing standardized and specification-compliant products.
2.Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.

18-month Warranty

1.All products come with an 18-month warranty period.
2.Replacement of damaged components (non-human-induced) is provided during the warranty period.

Technical Support

We offer free technical advice for life to all our customers.

Spare Parts

90% of the crane spare parts manufactured in our factory, we are able to supply our customers with the parts they need in the first instance and guarantee their suitability for use.

Installation Services

We provide professional installation teams for customers in need to ensure the safe and effective operation of our products.

One-Stop Supplier

We provide over 200 types of cranes and their related products, saving customers’ purchasing time.
