Description

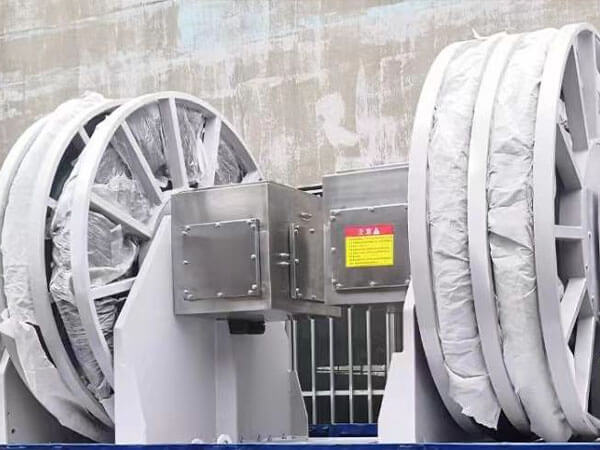

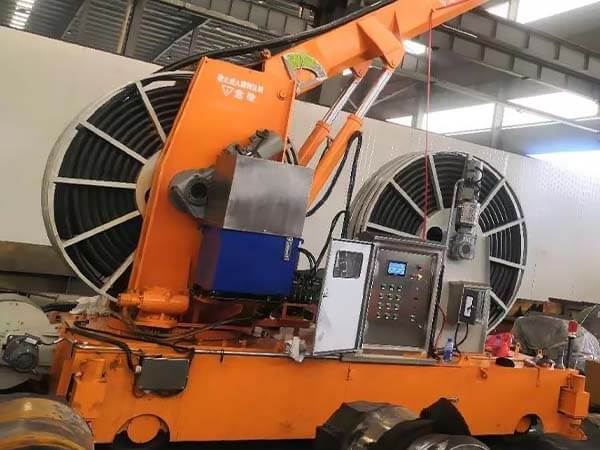

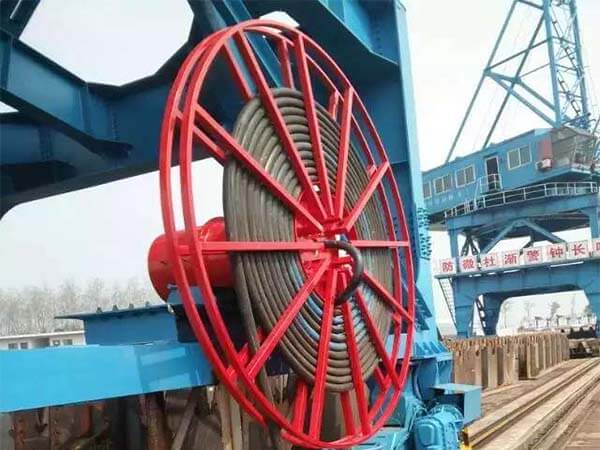

The cable drum of a hydraulic motor type crane is a device that uses a hydraulic motor as the driving source to automatically retract and release cables, and provides power supply for wet spraying machine operation through a collector ring.
Working Condition
1. For elevations below 2000m, additional high-altitude components are required for elevations above 2000m
2. Temperature: -40 ° C to 50 ° C
3. Relative humidity of the air: The average monthly humidity in a wet month is 90%
4. The voltage fluctuation range of the power supply unit’s power grid shall not exceed 5% of the rated voltage
Features
The hydraulic motor type cable reel has powerful power, precise control, and efficient energy-saving characteristics, which can adapt to various working conditions.
It also has low noise during operation and will not produce excessive noise pollution.
These advantages have won the trust of customers and also extended the service life of the drum.
Technical Data
| Model | 10mm² | 16-m² | 25mm² | |||||||||
| JQ-15-l | 25 | 20 | 15 | |||||||||
| JQ-30-l | 45 | 40 | 30 | |||||||||
| JQ-60-l | 75 | 70 | 60 | |||||||||
| JQ – | | | ||||||||||||
| Model | 10mm² | 16mm | 25mm² | |||||||||
| JQ-15-1 | 25 | 20 | 15 | |||||||||
| JQ-30-1 | 45 | 40 | 30 | |||||||||
| JQ-60-l | 75 | 70 | 60 | |||||||||
| Model | E | F | D1 | D2 | M | N | P | H | G(kg) | |||
| JQ-15-1 | 80 | 83 | 350 | 550 | 250 | 300 | 360 | 325 | 150 | |||
| TQ-30-1 | 80 | 83 | 400 | 650 | 250 | 800 | 360 | 375 | 170 | |||
| JQ-60-1 | 80 | 83 | 400 | 750 | 250 | 300 | 360 | 425 | 210 | |||
Service
1.Providing standardized and specification-compliant products.
2.Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
1.All products come with an 18-month warranty period.
2.Replacement of damaged components (non-human-induced) is provided during the warranty period.
We offer free technical advice for life to all our customers.
90% of the crane spare parts manufactured in our factory, we are able to supply our customers with the parts they need in the first instance and guarantee their suitability for use.
We provide professional installation teams for customers in need to ensure the safe and effective operation of our products.
We provide over 200 types of cranes and their related products, saving customers’ purchasing time.
