Description

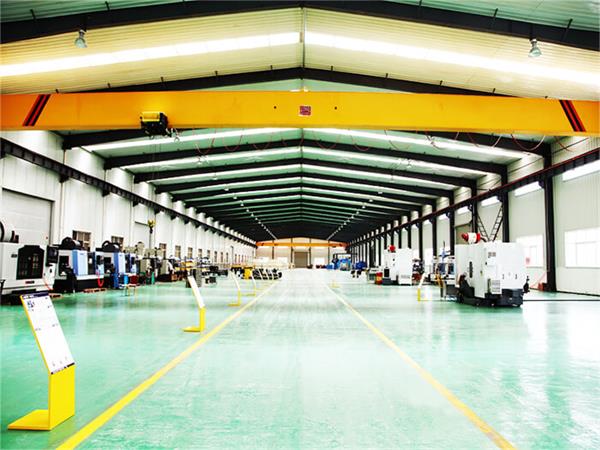

HD European electric double girder bridge crane widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port and wharf, logistics and other places. The main beam employs bias-rail box-type structure and connects with end beam by high-strength bolt ensuring easy transportation. The professional processing equipment ensure the connection accuracy of main end beam, making crane run steadily.
Working Condition
1.Metal structures and mechanical parts should have sufficient strength, stiffness and buckling resistance.
2. It is required that parts and metal structures are not damaged after being loaded. For parts such as steel wire ropes with complex stress states, static strength calculations are usually carried out based on the main load and main deformation form, and a higher safety factor is used. It must also be required that the deformation of the component under the action of the load is within the allowable range, that is, There should be sufficient stiffness.
Second, the whole machine must have the necessary stability against overturning.
3. The prime mover has the power to meet the operating performance requirements, and the braking device should provide the necessary braking torque.
Features
High load capacity: The design and structure of the European double beam crane enable it to carry larger loads. They usually have higher load capacity than other cranes. This means they can be used in heavier industrial, construction, or manufacturing fields.
High stability: The European double beam crane has higher stability and better balance ability. This is due to its double beam design and wider beam span. This design makes the European double beam crane more stable and balanced during transportation or unloading of heavy objects, thereby reducing the risk of accidents.
Long service life: European double beam cranes typically use high-quality materials and manufacturing processes to provide them with a longer service life. This means they require less maintenance and repairs, thereby reducing downtime and costs.
Strong adaptability: The European double beam crane can adapt to various working scenarios and load requirements. They can be customized according to different applications to meet different needs. For example, they can be installed at different heights and angles to meet different work requirements.
Technical Data
| Capacity(t) | Span(m) | Lifting height(m) | Working group | Lifting speed(m/min) | Vehicle weight (t) | Track | Power rate(kW) |
| 5 | 10.5-31.5 | 22 | A5 | 10.5 | 4.7-17.6 | 38kg/m | 8.24 |
| 10 | 10.5-31.5 | 16.5 | A5 | 5.3 | 4.9-22.4 | 38kg/m | 12.58 |
| 16 | 10.5-31.5 | 13 | A5 | 3.9 | 7.4-24.6 | 38kg/m | 21.5 |
| 20 | 10.5-31.5 | 13 | A5 | 3.8 | 8-28.3 | 38kg/m | 21.5 |
| 25 | 10.5-31.5 | 13 | A5 | 3.9 | 9.4-32.2 | 38kg/m | 28 |
| 32 | 10.5-31.5 | 13 | A5 | 3.8 | 10.4-34.5 | QU70 | 28.2 |
| 40 | 10.5-31.5 | 14.5 | A5 | 3.25 | 13.6-38.1 | QU70 | 41 |
| 50 | 10.5-31.5 | 12.5 | A5 | 2.9 | 14.6-40.1 | QU70 | 49 |
| 63 | 10.5-31.5 | 17 | A5 | 3.3 | 23.2-63.2 | QU80 | 53.4 |
| 80 | 10.5-31.5 | 15 | A5 | 3.3 | 18.5-69 | QU80 | 77 |
Spare Parts
Service
1.Providing standardized and specification-compliant products.
2.Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
1.All products come with an 18-month warranty period.
2.Replacement of damaged components (non-human-induced) is provided during the warranty period.
We offer free technical advice for life to all our customers.
90% of the crane spare parts manufactured in our factory, we are able to supply our customers with the parts they need in the first instance and guarantee their suitability for use.
We provide professional installation teams for customers in need to ensure the safe and effective operation of our products.
We provide over 200 types of cranes and their related products, saving customers’ purchasing time.
