Description

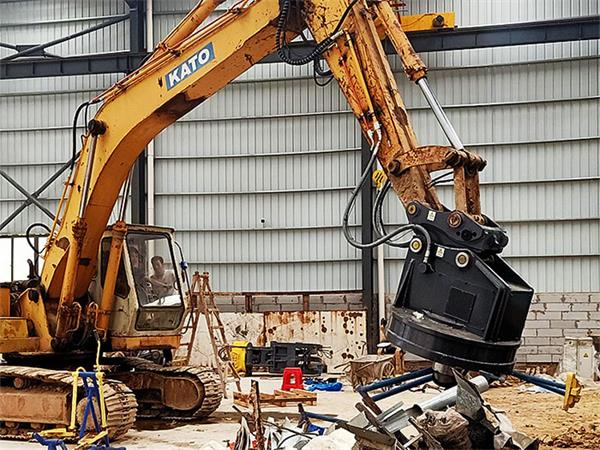

The hydraulic magnet lift, also known as a lifting suction cup or hydraulic lifting device, is mainly used in industries such as metallurgy, mining, machinery, and transportation for lifting ferromagnetic materials such as steel. It is suitable for handling cast iron ingots, steel balls, and various types of scrap steel. It uses magnetic force to firmly grip ferromagnetic workpieces and is used for flat suction of steel bars, scrap iron, as well as for scrapping cars, ships, steel structures, and more. Suction cups are classified into two types based on the source of magnetic force: hydraulic suction cups and electric suction cups.
Working Condition
1. The altitude of the homework site cannot exceed 2000 meters;
2. The maximum temperature of the surrounding medium cannot exceed 60 ℃, and the minimum temperature cannot be lower than -20 ℃;
3. The working environment should ensure that there are no hazards and no corrosive gases present;
4. The relative humidity of the ambient air should not exceed 85%;
5. Can be used indoors or outdoors for work
Features
The magnetic material of the electromagnet is made of low-carbon steel, which allows the working air gap to reach the maximum magnetic field.
The magnetic force distribution on the entire magnetic pole surface of the electromagnet is very uniform. Therefore, it can achieve a large suction to weight ratio.
Electromagnetic iron is more scientifically and reasonably designed through computer optimization of magnetic circuits.
High frequency and high temperature electromagnets ensure the same lifting capacity as room temperature electromagnets of the same specification, while slightly increasing their own weight and reducing power consumption.
The electromagnetic coil adopts a low-temperature rise design, with small changes in suction force between cold and hot states.
The coil wire is made of high-quality oxide film flat aluminum strip, with an insulation grade of C, ensuring the service life of the coil.
Technical Data
| Model | Unit | HM700 | HM1000 | HM1200A | HM1200B | HM1500 |
| Outter Diameter | mm | Ø700 | Ø1000 | Ø1200 | Ø1200 | Ø1500 |
| Machine Weight | kg | 1400 | 1600 | 1800 | 1860 | 2200 |
| Suitable Excavator | ton | 6–9 | 10–15 | 16–25 | 16–25 | 26–35 |
| Generator Power | KW | 0.6 | 10 | 10 | 15 | 15 |
| Working Flow | Ipm | 50-100 | 90-110 | 100-140 | 100-140 | 130-170 |
| Working Pressure | bar | 180 | 190 | 200 | 200 | 210 |
| Lifting Ability | Slab Sheet | ≤ 1 ton | 1 – 2 ton | 3 – 4 ton | 3 – 4 ton | 4 – 6 ton |
| Other Type Scraps | ≤ 100 kg | 100 – 200 kg | 150 – 250 kg | 150 – 250 kg | 175 – 275 kg |
Spare Parts
Service
1.Providing standardized and specification-compliant products.
2.Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
1.All products come with an 18-month warranty period.
2.Replacement of damaged components (non-human-induced) is provided during the warranty period.
We offer free technical advice for life to all our customers.
90% of the crane spare parts manufactured in our factory, we are able to supply our customers with the parts they need in the first instance and guarantee their suitability for use.
We provide professional installation teams for customers in need to ensure the safe and effective operation of our products.
We provide over 200 types of cranes and their related products, saving customers’ purchasing time.
