Description

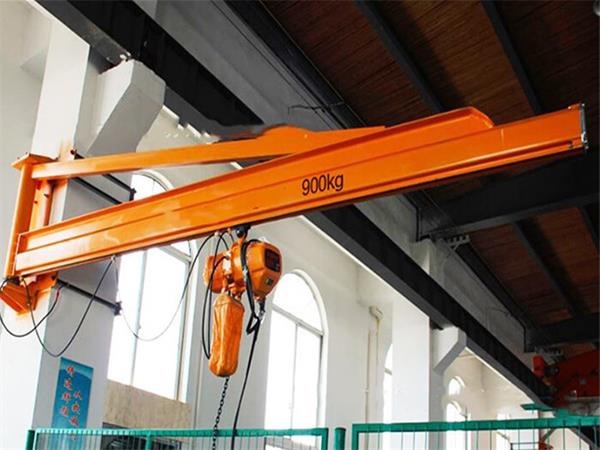

The walking track of the machine is installed on the cement column of the factory building, and longitudinal movement can be carried out along the track. At the same time, the electric hoist can also complete lateral movement along the selection arm and vertical lifting. This machine greatly expands the operating range and effectively utilizes the factory space, resulting in a more ideal usage effect. The lifting capacity ranges from 1000KG to 5000KG, and the lifting height can be customized by customers.
Working Condition
Working temperature: -20℃-40℃
Features
Wide operating range and flexible angles
Better utilization of factory space with smaller footprint
Technical Data
| Capacity – t | 0.25-5 |
| Lift height – m | 3-10 |
| Radius – m | 2-6 |
| Lift speed – m/min | 8 |
| Traveling – m/min | 20 |
| Rotation Speed-m/min | 0.76-0.53 |
| Rotation – degree | 180 |
| Control way | Pendent / Remote Control |
| Working temperature | -20~+40℃ |
Spare Parts
Service
1.Providing standardized and specification-compliant products.
2.Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
1.All products come with an 18-month warranty period.
2.Replacement of damaged components (non-human-induced) is provided during the warranty period.
We offer free technical advice for life to all our customers.
90% of the crane spare parts manufactured in our factory, we are able to supply our customers with the parts they need in the first instance and guarantee their suitability for use.
We provide professional installation teams for customers in need to ensure the safe and effective operation of our products.
We provide over 200 types of cranes and their related products, saving customers’ purchasing time.
