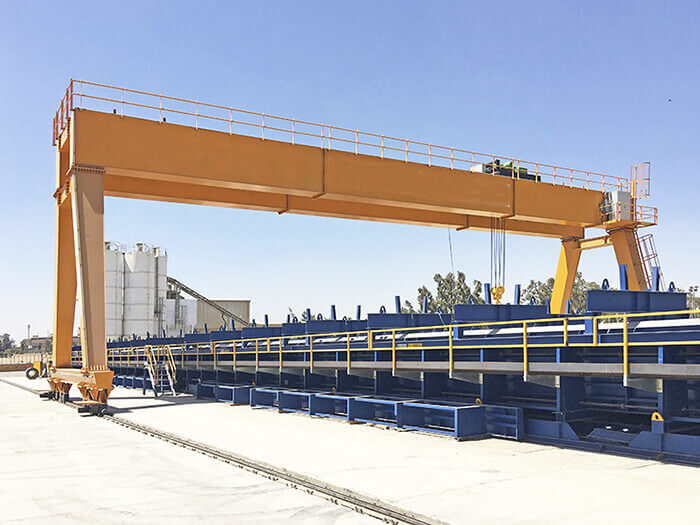

European Double Beam Gantry Crane

  • Power source: 380V 50hz 3Phase
  • Lifting capacity: 3-20t
  • Span: 18-35m
  • Lifting height: 10-12m
  • Working level: A3-A7

Description

European-style double main girder gantry cranes have strong load-bearing capacity, large spans, good overall stability, and many varieties. However, compared with single main girder gantry cranes with the same lifting capacity, their own mass is larger and the cost is higher. According to the different main beam structures, it can be divided into two forms: box beam and truss. Generally, box-shaped structures are used. This product can be widely used in factories, freight yards, warehouses and other places where goods are loaded and unloaded.

Working Condition

The working environment temperature is: -25℃~+40℃
The relative humidity is not more than 85%, and the altitude is not more than 2000m.

Features

01

Large carrying capacity

02

Good overall stability

03

Self-importance

04

Three-level drive, high work efficiency

Technical Data

Capacity (ton)51016/3.220/532/550/10
Span (m)18,22, 24, 26, 30, 35
Lifting height (m)10.11,12
Working classA5
Control wayCabin control or remote control
Power source380V 50HZ 3phase (Could supply it as yours)
Trolley lifting mechanism
LUfting speed (m/min)Main hook11.38.57.97.27.55.9
Auxlliary hook14.615.415.410.4
Trolley traveling mechanism
Traveling speed (m/min)37.335.636.636.63736
Crane traveling mechanism
Traveling speed (m/min)37.339.737.339.739.438.5
Motor power(Kw)40.8-51.841.5-52.880-7784-8199.3-117.3126.5
Steel track recommended43kg/m43kg/m or QU70

Spare Parts

Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.
Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
Crane control box
The surface of the control box has undergone anti-corrosion treatment Reasonable layout for easy maintenance Protection level IP55 Environmental temperature:<45 ° C, humidity<90%

Service

Free Crane Solution

1.Providing standardized and specification-compliant products.
2.Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.

18-month Warranty

1.All products come with an 18-month warranty period.
2.Replacement of damaged components (non-human-induced) is provided during the warranty period.

Technical Support

We offer free technical advice for life to all our customers.

Spare Parts

90% of the crane spare parts manufactured in our factory, we are able to supply our customers with the parts they need in the first instance and guarantee their suitability for use.

Installation Services

We provide professional installation teams for customers in need to ensure the safe and effective operation of our products.

One-Stop Supplier

We provide over 200 types of cranes and their related products, saving customers’ purchasing time.
