Grab cranes have many applications in bulk material lifting and transportation. Grab cranes can grab bulk materials such as sand, gravel, wood, solid waste, and waste steel through a special lifting tool called a grab bucket.
There are many types of grab crane grabs. First, according to the driving mode, it can be divided into manual, electric, and hydraulic. Then, according to the different grabbing materials, it can be divided into double-petal flat-mouth grab, multi-petal plum blossom-shaped grab, special grab for wood, etc. For example, flat-mouth grabs are more suitable for grabbing sand, gravel and coal, multi-petal plum blossom-shaped grabs can be used for solid garbage, and special grabs for wood can be used for wood.
The working process of grab crane is to lift the grab to the appropriate position by wire rope, lower the opening and closing wire rope of the grab, and rely on the deadweight of the lower beam to force the grab to open with the main axis of the lower beam as the center. When the grab is opened to the point where it collides with the bumper of the ear plate, the grab is opened to the maximum limit.
When the grab is opened, the center distance between the upper beam pulley and the lower beam pulley increases, and then the wire rope falls, and the opened grab is dropped on the bulk material to be grabbed, and then the opening and closing wire rope is reeled in to restore the center distance between the upper beam pulley and the lower beam pulley to the original position, thus completing the material grabbing process. The closed grab bucket is filled with materials, and finally the opening and closing wire rope is lifted and runs to the required unloading site via the track. The grab bucket opens to unload the grabbed bulk material.
Grab cranes have great advantages in grabbing and transporting bulk materials. They are important transportation tools for dock loading and unloading, waste incineration power plants, forest farms, etc.
MH type electric hoist gantry crane is used together with CD MD model electric hoists.
L Type electric hoist gantry crane match with CD1/ MD1, HC type Electric Wire rope hoist, to lifting and transporting the heavy materials, mainly use indoors and outdoors.
BMH Type Semi Gantry Crane is a bridge-type crane whose bridge is supported on the ground track through outriggers on both sides.
A-type Double Beam Hook Gantry Crane, It is mainly composed of a gantry (main beam, outriggers, lower beam, etc.), a lifting mechanism, a running mechanism and an electronic control part.
The rail-mounted container gantry crane (English abbreviation RMG) is one of the special machines for container yards.

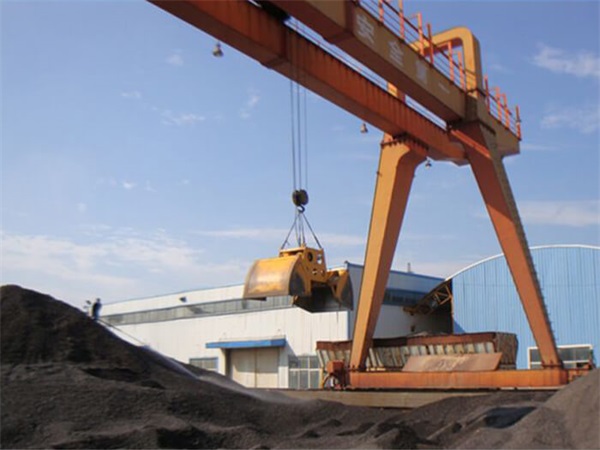

MZ Type Double-beam Grab Gantry Crane are mainly used in conjunction with bridge cranes, port cranes, and winches. They are widely used in ports, power plants, docks, chemical industries, etc. to grab various types of loose accumulations, such as ore, coal, slag, etc.
Winch Gantry Crane are used in open warehouses, windy areas, material stocks area, bridge building, concrete industry, cement plant, granite industry, construction industry, engineering industry, port, transportation, construction, dockyard, and other building sites for lifting and loading unloading objects.
U Type Subway Turn Slag Hook Gantry Crane also known as subway slag flipping machine, slag flipping gantry crane, slag flipping gantry crane, etc., is a specialized gantry crane used for excavation in subway and tunnel construction projects.
We design cranes that meet your needs. Whether you need to increase safety, maximize production capacity or reliability, or reduce costs, we deliver.
